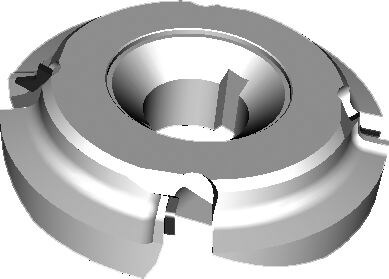

182502 - DIAMAX Edge Rounding Cutters CM DP - HOLZ-HER FF701 (FF501 / 1833)
Product

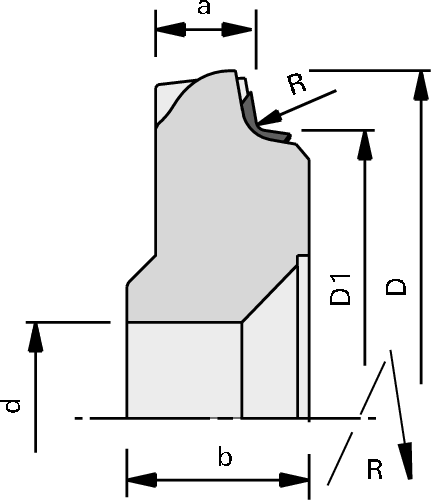

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- edge banding machines HOLZ-HER aggregate FF701 (FF501 / 1833)
- for rounding of solid wood, veneer and plastic edge bands
Design
- with shear angle
- polished face and high-finish clearance angle
- resharpenable area 3.5 mm
- n max = 24.000 min-1
Advantages
- optimized chip removal thanks to ChipMeister version
- less chips remain inside of the machine
- no malfunctions due to chips
- reduced suction performance
- low noise level
Notes
- constant basic dimensions a and D1
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| R = Radius | 2,0 [mm] | |
| Ø D = Cutting circle diameter | 72.5 [mm] | |
| Ø D1 = Basis cutting circle diameter | 61 [mm] | |
| a = Distance to machine | 13.5 [mm] | |
| b = Hub width | 19 [mm] | |
| Ø d = Bore diameter | 20 [mm] | |
| Z = No. of teeth | 4 | |
| DKN = Double keyway | 5x2,2 [mm] | |
| nmax = maximum RPM | 24,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
| Machine/Type | HOLZ-HER 1833 | |
|
Dimensions entered are not listed?
available from stock |
||
