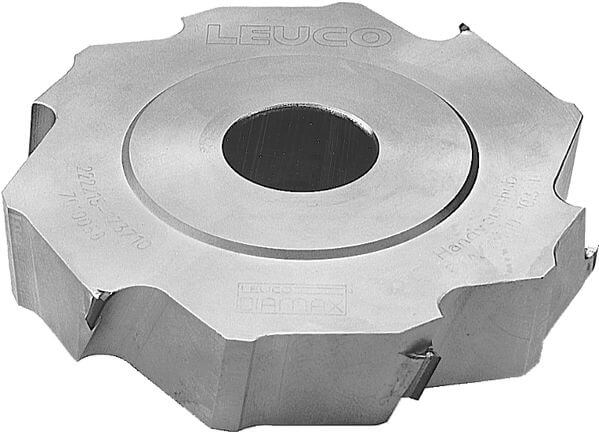

173710 - DIAMAX Jointing / Rabbeting Cutters DP
Product
Drawing
-
- Polycrystalline diamond [DP]
- MAN
Technical data
Description
Machine / Application
- table shapers
- machines Homag
- for chip-free jointing and rabbeting of melamine-, paper-, HPL-laminated and veneered panels
Design
- opposing shear angle
- resharpenable area 1.5 mm
Advantages
Notes
- application against feed
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 125 [mm] | |
| B = Cutting width | 25 [mm] | |
| b = Hub width | 26 [mm] | |
| Ø d = Bore diameter | 30 [mm] | |
| Z = No. of teeth | 2+2 | |
| DKN = Double keyway | 8x3 [mm] | |
| nmin-nmax = RPM range | 6100-10500 [min-1] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
