182440 - Planing and Rabbeting Cutterheads HW - mounted on arbor
Product

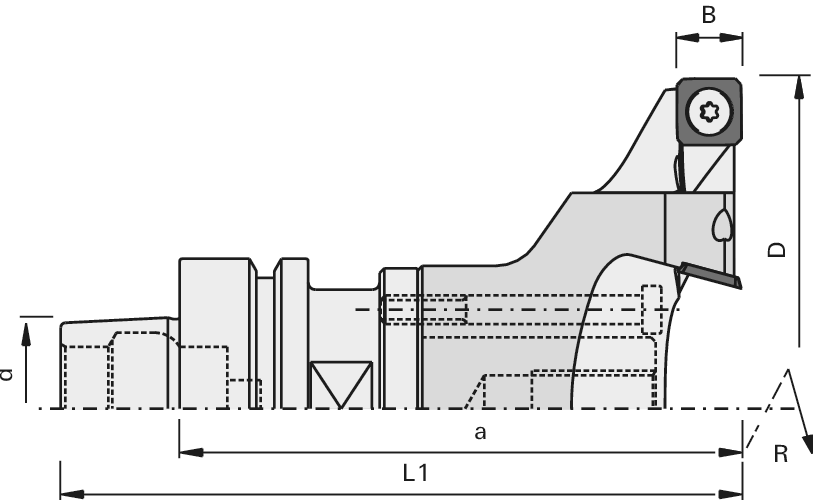

Drawing
-
- Tungsten Carbide [HW]
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for planing and rabbeting in wood-based panels
Design
- mounted on tool holder HSK 63 F
Advantages
- high milling performance when dressing the workbench boards, e.g. with Nesting-technology
- smooth surface thanks to special cutting edge geometry
Notes
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 150 [mm] | |
| a = Distance to machine | 113 [mm] | |
| B = Cutting width | 14 [mm] | |
| b = Hub width | 51.9 [mm] | |
| L1 = Total length | 138 [mm] | |
| Ø d = Bore diameter | HSK 63F [mm] | |
| Z = No. of teeth | 4 | |
| DKN = Double keyway | 8x3,3 [mm] | |
| NL = Pin holes | 6/7/48 | |
| nmax = maximum RPM | 10,100 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Turnover Knives
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
| Profile Turnover Knives HW with 4 cutting edges and chamfer - Ledinek Rotoles | 14x14x2.0 RR | 180932 | |||
|
available from stock |
|||||
