p-System High-Performance Jointing Cutters CM DP
Product

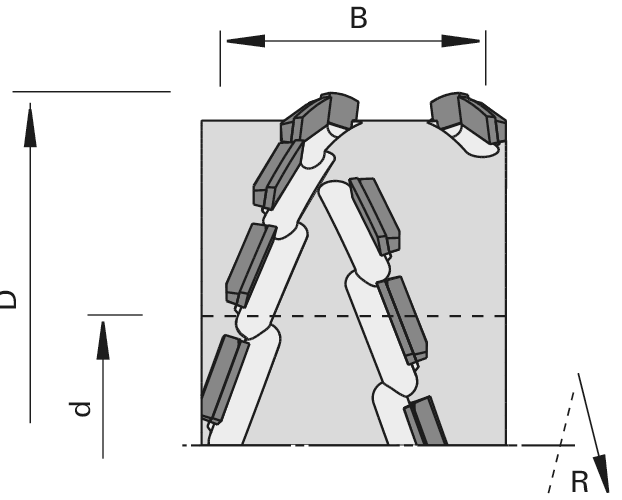

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- double end tenoners
- edge banding machines
- for chip-free high-performance jointing of solid woods (free of knots) along and across the grain
- for high-performance jointing and dividing of melamine-, paper-, HPL-laminated, foil-coated and veneered panels and lacquered surfaces
- Finish-quality in the case of fiber materials such as fabric-laminated panels, linoleum with jute fibers, cork etc.
Design
- symmetrical and asymmetrical design
- extremely scoring cut
- resharpening area 4 mm
Advantages
- maximum cutting quality and edge lives
- large depth of cut possible
- perfectly suitable for laser-edge-technology
Notes
- application against feed
- recommended feed rate per tooth: wood-based panels 0.8 mm, solid wood 0.4 mm
- crowned design on request
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
DKN
[mm] |
Shear∡
[°] |
nmax
[min-1] |
L/R | Machine/Type | Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||||
| 70 | 47,8 | 41 | 30 | 3+3 | 8x3,3 | 70 | 27,000 | L | asymmetrical | 184079 | |||
| 70 | 47,8 | 41 | 30 | 3+3 | 8x3,3 | 70 | 27,000 | R | asymmetrical | 184078 | |||
| 100 | 42,9 | 40.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | L | Brandt | asymmetrical | 184074 | ||
| 100 | 42,9 | 40.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | R | Brandt | asymmetrical | 184073 | ||
| 100 | 62,5 | 40.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | L | Brandt | asymmetrical | 184077 | ||
| 100 | 62,5 | 40.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | R | Brandt | asymmetrical | 184076 | ||
| 100 | 42,9 | 60.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | R | SCM | asymmetrical | 80500976 | ||
| 100 | 42,9 | 60.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | L | SCM | asymmetrical | 80500975 | ||
| 100 | 62,5 | 60.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | R | SCM | asymmetrical | 80500978 | ||
| 100 | 62,5 | 60.6 | 30 | 3+3 | 8x3,3 | 70 | 19,000 | L | SCM | asymmetrical | 80500977 | ||
| 125 | 33,1 | 25 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | Homag | symmetrical | 185818 | ||
| 125 | 33,1 | 54 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | Homag | asymmetrical | 80495633 | ||
| 125 | 33,1 | 54 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | Homag | asymmetrical | 80495634 | ||
| 125 | 42,9 | 54 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | Homag | asymmetrical | 80495619 | ||
| 125 | 42,9 | 54 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | Homag | asymmetrical | 80495620 | ||
| 125 | 47,8 | 40 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | Homag | symmetrical | 184071 | ||
| 125 | 61,5 | 40 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | Homag | quasi symmetrical | 184328 | ||
| 125 | 61,5 | 40 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | Homag | quasi symmetrical | 184327 | ||
| 125 | 62,5 | 54 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | Homag | asymmetrical | 80495637 | ||
| 125 | 62,5 | 54 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | Homag | asymmetrical | 80495638 | ||
| 125 | 33,1 | 72 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | IMA 08.378 | asymmetrical | 80495635 | ||
| 125 | 33,1 | 72 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | IMA 08.378 | asymmetrical | 80495636 | ||
| 125 | 42,9 | 72 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | IMA 08.378 | asymmetrical | 80495621 | ||
| 125 | 42,9 | 72 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | IMA 08.378 | asymmetrical | 80495622 | ||
| 125 | 62,5 | 72 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | IMA 08.378 | asymmetrical | 80495639 | ||
| 125 | 62,5 | 72 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | IMA 08.378 | asymmetrical | 80495640 | ||
| 125 | 42,9 | 57 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | IMA 08.379 | asymmetrical | 184987 | ||
| 125 | 42,9 | 57 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | IMA 08.379 | asymmetrical | 184988 | ||
| 125 | 62,5 | 57 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | L | IMA 08.379 | asymmetrical | 184989 | ||
| 125 | 62,5 | 57 | 30 | 3+3 | 8x3,3 | 70 | 15,000 | R | IMA 08.379 | asymmetrical | 184990 | ||
| 180 | 42,9 | 58.5 | 35 | 5+5 | 10x3,3 | 70 | 10,000 | L | quasi symmetrical | 184085 | |||
| 180 | 42,9 | 58.5 | 35 | 5+5 | 10x3,3 | 70 | 10,000 | R | quasi symmetrical | 184063 | |||
| 180 | 62,5 | 58.5 | 35 | 5+5 | 10x3,3 | 70 | 10,000 | L | quasi symmetrical | 184086 | |||
| 180 | 62,5 | 58.5 | 35 | 5+5 | 10x3,3 | 70 | 10,000 | R | quasi symmetrical | 184064 | |||
| 200 | 42,9 | 50 | 35 | 5+5 | 10x3,3 | 70 | 9,000 | L | quasi symmetrical | 184088 | |||
| 200 | 42,9 | 50 | 35 | 5+5 | 10x3,3 | 70 | 9,000 | R | quasi symmetrical | 184066 | |||
| 125 | 42,9 | 70/30 | 4+4 | 70 | 15,000 | L | IMA 08.379 Hydro | asymmetrical | 185127 | ||||
| 125 | 42,9 | 70/30 | 4+4 | 70 | 15,000 | R | IMA 08.379 Hydro | asymmetrical | 185126 | ||||
| 200 | 42,9 | 60/40 | 8+8 | 70 | 9,000 | L | asymmetrical | 184068 | |||||
| 200 | 42,9 | 60/40 | 8+8 | 70 | 9,000 | R | asymmetrical | 184067 | |||||
