184709 - High-Performance Shank-Type Cutters with solid carbide body for the machining of aluminum - Z1
Product

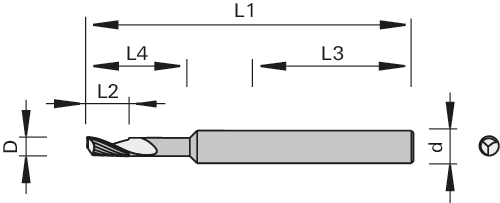

Drawing
-
- Solid Tungsten Carbide
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for jointing, rabbeting and grooving in aluminum alloys, copper alloys and NF metals
- traveling plunge cut using Z and X or Y axis
Design
- positive spiral
- polished chip gullets
Advantages
- optimal chip removal and excellent cutting quality thanks to specially polished chip gullets and positive spiral
Notes
- negative spiral on request
- clamping elements: ps-System with reducing sleeves Class-No. 933280, TRIBOS, draw-in collet chuck
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 3 [mm] | |
| L4 = Cuttind width 1 | 25 [mm] | |
| L2 = Cutting width | 10 [mm] | |
| Ø d = Shank diameter | 8,0 [mm] | |
| L3 = Shank length | 55 [mm] | |
| L1 = Total length | 80 [mm] | |
| Z = No. of teeth | 1 | |
| Helical direction = Helical direction | positive | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
