TwinBlade Scraper Turnover Knives HW - to prevent material fracturing - Homag

Product

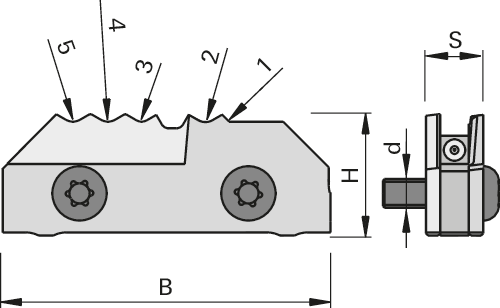

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • machines Homag with scraping unit Type PN 21

Design

  • cutting edge with chamfer to prevent material fracturing
  • cutting material: HW
  • HL Board 06 for wood-based panels, plastics and hard woods
  • topline (polished face and micro-ground clearance angle)

Advantages

  • no material fracturing
  • no additional work steps needed
  • high-gloss edges in acrylic are possible

Notes

  • Position 1 + 2 TwinBlade
  • Position 3 - 5 high gloss

Table- and picture caption ...

R
[mm] 		B
[mm] 		H
[mm] 		S
[mm] 		Ø d
[mm] 		LEUCODUR PU
[pc.] 		L/R Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

1; 2; 1; 1,5; 2 45,8 17 8 5,0 HL Board 06 topline 1 L topline 185322
|
1; 2; 1; 1,5; 2 45,8 17 8 5,0 HL Board 06 topline 1 R topline 185323
|
45°; 1,6; 1; 1,6; 2 45,8 17 8 5,0 HL Board 06 topline 1 L topline 185324
|
45°; 1,6; 1; 1,6; 2 45,8 17 8 5,0 HL Board 06 topline 1 R topline 185325
|
1; 2; 1; 2; 3 45,8 17 8 5,0 HL Board 06 topline 1 L topline 185326
|
1; 2; 1; 2; 3 45,8 17 8 5,0 HL Board 06 topline 1 R topline 185327
|
1,5; 2; 45°; 1,5; 2 45,8 17 8 5,0 HL Board 06 topline 1 L topline 185328
|
1,5; 2; 45°; 1,5; 2 45,8 17 8 5,0 HL Board 06 topline 1 R topline 185329
|
1,5; 2; 1; 1,5; 2 45,8 17 8 5,0 HL Board 06 topline 1 L topline 185331
|
1,5; 2; 1; 1,5; 2 45,8 17 8 5,0 HL Board 06 topline 1 R topline 185330
|
Show 1 to 10 of 34 entries
