173194 - Countersink Bits HW for Twist Drills
Product

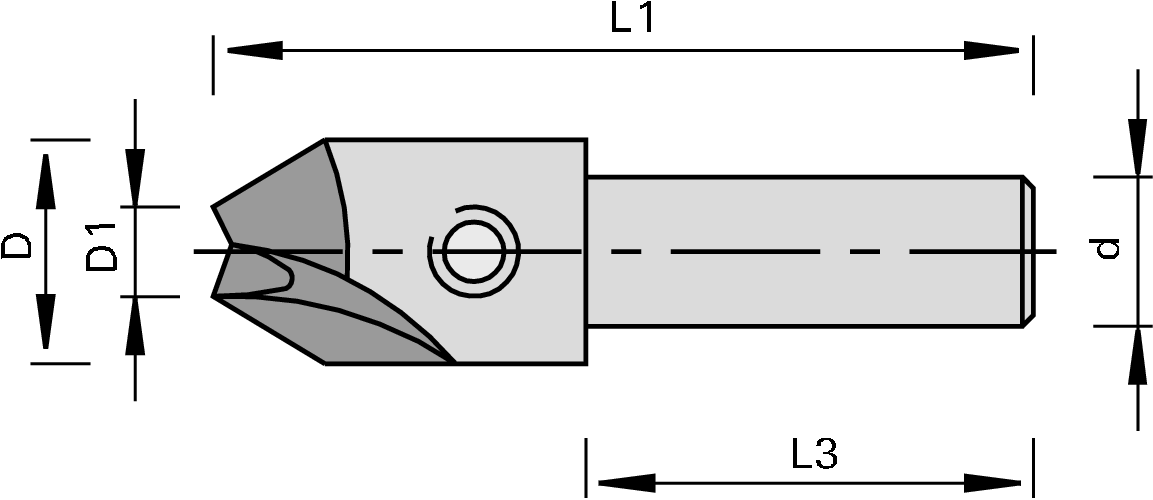

Drawing
-
- Tungsten Carbide [HW]
- MAN
Technical data
Description
Machine / Application
- for drilling of countersinks in solid woods and wood-based panels
- for chip-free countersink holes at 90 degree angle
Design
- HW-tipped
Advantages
Notes
- for mounting of twist drills with Ø 3 - 6 mm
- continuous adjustment of the countersink diameter and the boring depth
| Feature | Value | |
|---|---|---|
| Ø D = Bore diameter | 15 [mm] | |
| Ø D1 = Bore diameter 1 | 4 [mm] | |
| Ø d = Shank diameter | 10 [mm] | |
| L3 = Shank length | 30 [mm] | |
| L1 = Total length | 58 [mm] | |
| Z = No. of teeth | 2 | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Spare parts / accessories
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
| Set Screws - with hexagon socket and cup point | M6x6 DIN EN ISO 4029 | 180003 | |||
|
available from stock |
|||||
