Forend cutter DP - door production

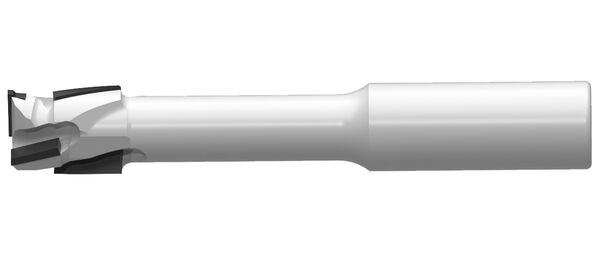

Product

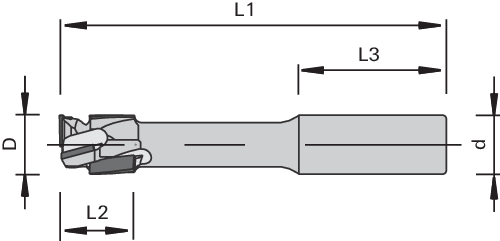

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • CNC machining centers
  • for cutting of the forend in doors

Design

Advantages

  • Optimized gullets

Notes

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z nmax
[min-1] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

16 20 16 40 105 1+2+2 24,000 R 80494923
|
14 20 16 40 105 1+2+2 24,000 L 80494925
|
