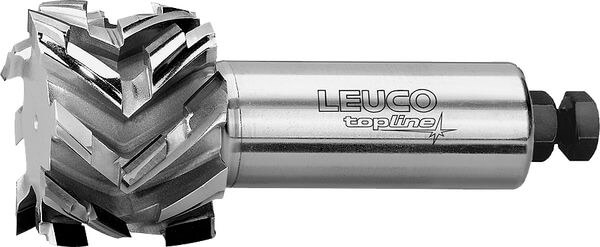

186142 - High-Performance Trimming Router Bits DP - Z=4+2+4
Technical data
Description
Machine / Application
- CNC routers
- for sizing cuts in raw, melamine-, paper-, HPL-laminated, foiled and veneered panels
Design
- high-performance tool for finish cuts
- with shear angle
- resharpening area 3.0 mm
Advantages
- high feed rates (up to 35 m/min) and good edge quality thanks to 4 cutting edges working in top layer
- minimized formation of dust thanks to 2 cutting edges working in core of board
- very good surface thanks to large cutting circle diameter
- good cutting quality on top and bottom edge thanks to opposing shear angle
Notes
- preferably for finish-cut operations on pre-sized workpieces
- Clamping elements: ps-System, TRIBOS , draw-in collet chuck
- with thread for length adjusting screw
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 48 [mm] | |
| L2 = Cutting width | 28 [mm] | |
| Ø d = Shank diameter | 25 [mm] | |

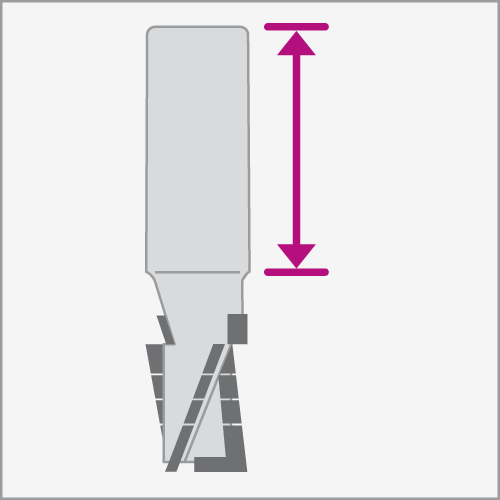

| L3 = Shank length | 62 [mm] | |
| L1 = Total length | 91 [mm] | |

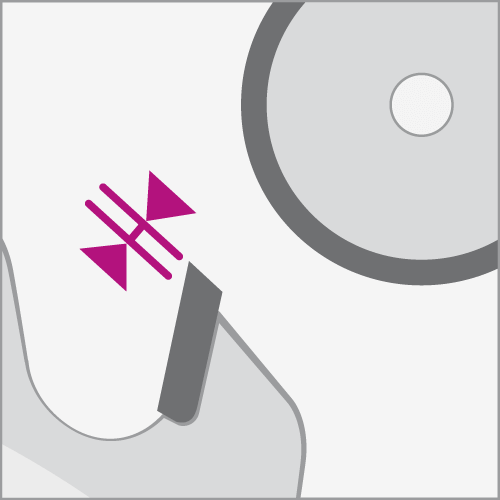

| Z = No. of teeth | 4+2+4 | |
| nmax = maximum RPM | 24,000 [min-1] | |
| H = Stack height/cutting height | 22-25 [mm] | |
| Resharpening area = Resharpening area | 3 [mm] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
