Rounding Chamfering Cutterheads HW - Z=2

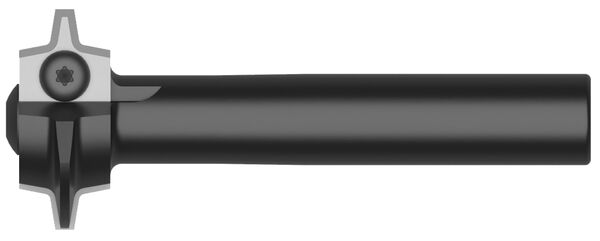

Product

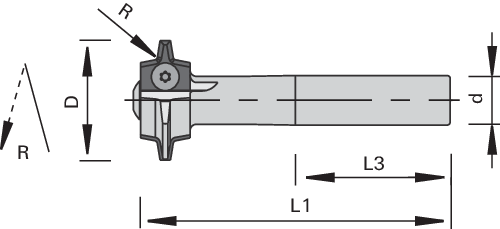

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • CNC routers
  • for rounding and chamfering solid wood and panel materials on one or both sides

Design

  • body with 2 HW turnover knives
  • righthand rotation
  • mechanical feed

Advantages

  • same cutter head body for radius 1 - 5 mm and chamfer

Notes

  • clamping elements: draw-in collet chuck

Table- and picture caption ...

R
[mm] 		Ø D
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z nmax
[min-1] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

1,0 40 16 50 100 2 24,000 R 80494958
|
