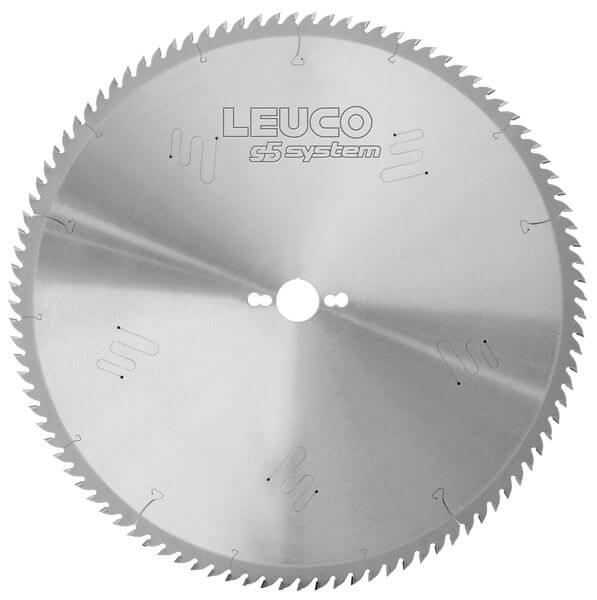

Sizing Saw Blades HW "G5"

table saws
chop and miter saws
for chip-free sizing cuts as well as clipping and mitre cuts in wood-based panels, solid woods and plastics

Showentries

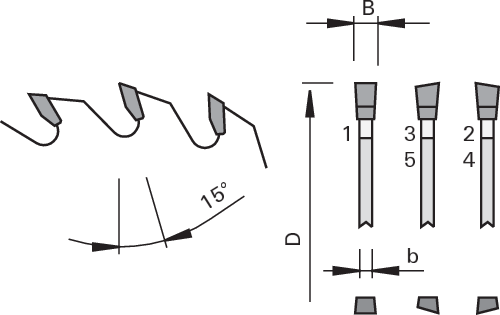

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	NL	Hook angle [°]	Shear∡ [°]	Tooth geometry	nmax [min-1]	Cutting quality*	LEUCODUR	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	200	3,0	2.2	30	65		15	15	G5	7,630		HL Board 04 plus		192789	\|
	220	3,0	2.2	30	70		15	15	G5	6,940		HL Board 04 plus		192790	\|
	240	3,0	2.2	30	75		15	15	G5	6,360	▲▲▲▲	HL Board 04 plus		192791	\|
	250	3,0	2.2	30	80	2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42	15	15	G5	6,110		HL Board 04 plus		192792	\|
	280	3,0	2.2	30	85	2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42	15	15	G5	5,450		HL Board 04 plus		192793	\|
	300	3,0	2.2	30	100	2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42	15	15	G5	5,090		HL Board 04 plus		192794	\|
	303	3,2	2.2	30	100	2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42	15	15	G5	5,040		HL Board 04 plus	Striebig	192795	\|
	315	3,0	2.2	30	100	2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42	15	15	G5	4,850		HL Board 04 plus		192801	\|
	350	3,0	2.2	30	100	2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42	15	15	G5	4,400		HL Board 04 plus		192796	\|
	380	3,0	2.2	32	120		15	15	G5	3,340		HL Board 04 plus	elumatec	192802	\|

Show 1 to 10 of 14 entries
