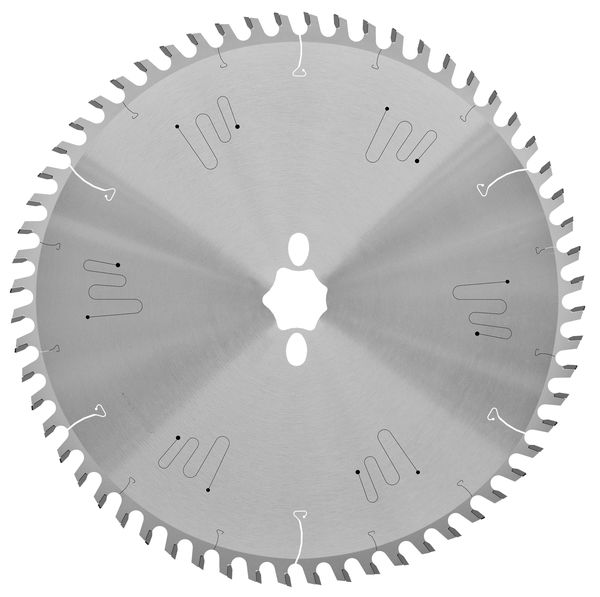

Sizing Saw Blades HW - easyFix - LowNoise

Product

Drawing

Tungsten Carbide [HW]

current tab: current tab: Article

Article

Machine / Application

table saws
vertical panel sizing saws
for sizing cuts

Design

vibration and noise damping ornaments
cutting material: HL Board 06 and HL Board 03

Advantages

easyFix: NEW, EASY HANDLING, easy and smooth mounting of the saw blade on the machine despite high-precision bore tolerance
extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations

Notes

Ident-No. 193335: extremely straight steel plate for Striebig panel sizing saws with scoring device
NL**- Combi3 = 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60

Showentries

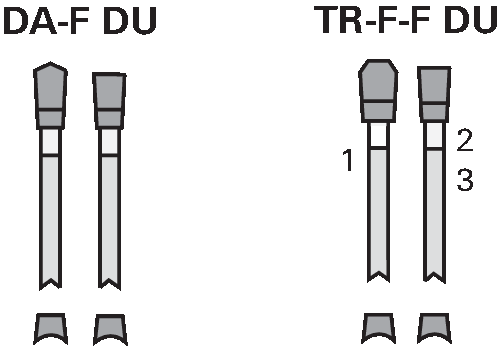

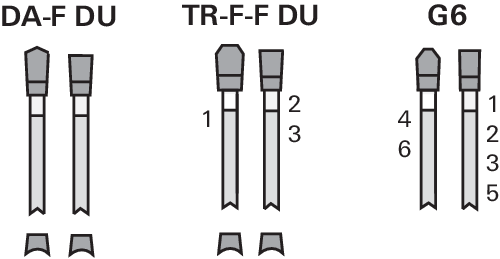

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	NL	Hook angle [°]	Tooth geometry	LEUCODUR	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	220	3,2	2.2	30	42	2/7/42 + 1/3/52	10	DA-F DU	HL Board 06		193326	\|
	250	3,2	2.2	30	48	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	10	DA-F DU	HL Board 06		193327	\|
	303	3,2	2.2	30	60	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	10	DA-F DU	HL Board 06	Score	193335	\|
	303	3,2	2.2	30	60	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	10	DA-F DU	HL Board 06		193328	\|
	350	3,5	2.5	30	72	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	10	DA-F DU	HL Board 06		193329	\|
	400	3,5	2.5	30	84	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	10	DA-F DU	HL Board 06		193330	\|
	250	3,2	2.2	30	48	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	-5	DA-F DU	HL Board 06		193331	\|
	303	3,2	2.2	30	60	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	-5	DA-F DU	HL Board 06		193332	\|
	350	3,5	2.5	30	72	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	-5	DA-F DU	HL Board 06		193333	\|
	303	3,2	2.2	30	60	2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60	10	TR-F-F DU	HL Board 03		193334	\|

Show 1 to 10 of 10 entries
