CC020 Countersink DP - replaceable pin
Product
Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Counterbore with thread (metric / imperial) for the use in hand-held machines (MDU) with stop holder
- for subsequent countersinking of bores
- for optimal riveted joints in the aerospace sector
- suitable for all fiber reinforced plastics, aluminum and other light metals
Design

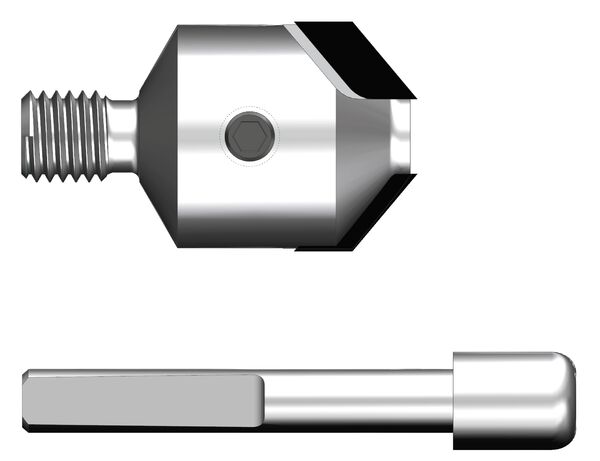

- designed with replaceable guiding pin
- with two or three cutting edges by default
- different replaceable pins are available for the same tool body
Advantages
- DP-tipping for long edge life and economic efficiency
- The replaceable pin allows countersinking of different bore diameters with one tool body
Notes
- Customer-specific tool design
- metric or imperial dimensions are possible
- Replaceable pin in HW or steel according to customer’s specification
|

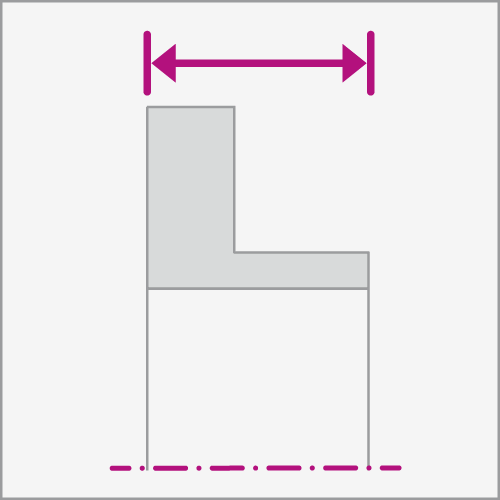

Ø D
[mm] |
Ø d
[inch] |
Ø D1
[mm] |
Ø D1
[inch] |
Ø d
[mm] |
Ø d
[inch] |
L1
[mm] |
L1
[inch] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 21.2 | 5 | M8x1 | 30.71 | 3 | R | 80458957 | ||||||
| 0,500 | 0,125 | 6,35-28 UNF | 1,190 | 3 | R | 1729321 | ||||||
| 0,625 | 0,1875 | 6,35-28 UNF | 1,078 | 2 | R | 80366369 | ||||||
