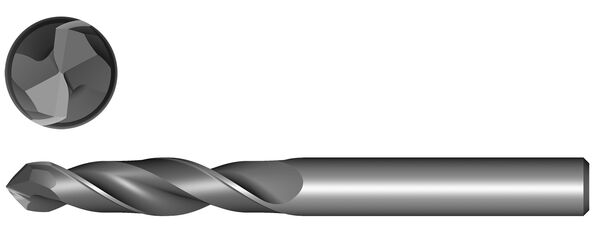

CD020 Drill bit 90/30 VHW
Product

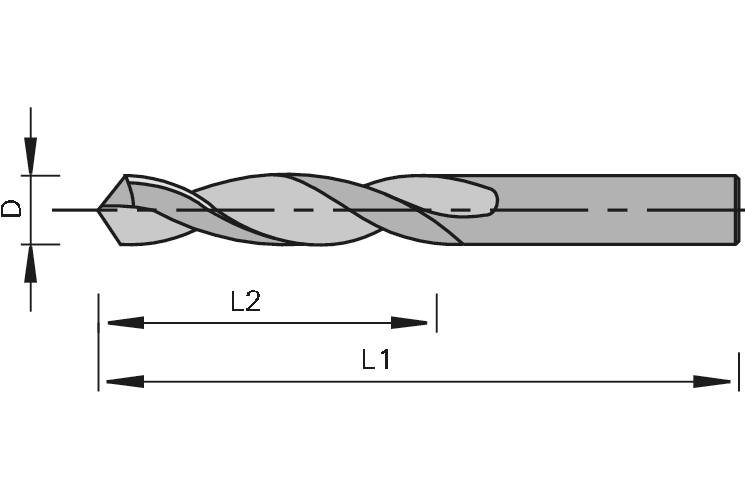

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines or ADUs (automatic drilling units)
- Very well suited for für UD laminates for example CFRP
Design
- Optimized, faceted tip geometry for chip-free through holes
- Tip angle 90°/30°
Advantages
- Long edge life due to reduced cutting forces and micrograin carbide
- Optionally available with adapted CVD diamond coating
Notes
- Intermediate dimensions available continuously from diameter 2.0 mm to 12.0 mm
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 4 | 22 | 4,0 | 55 | 2 | R | 187816 | ||
| 6 | 30 | 6,0 | 70 | 2 | R | 187818 | ||
| 8 | 35 | 8,0 | 80 | 2 | R | 187825 | ||
| 10 | 40 | 10 | 90 | 2 | R | 187827 | ||
