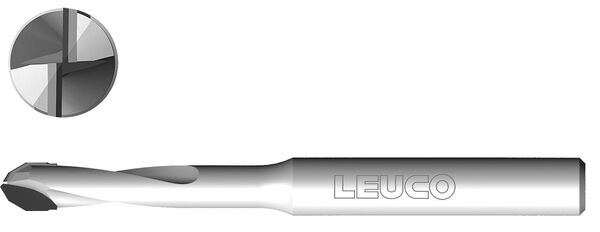

CD030 Drill bit 120/60 DP
Product

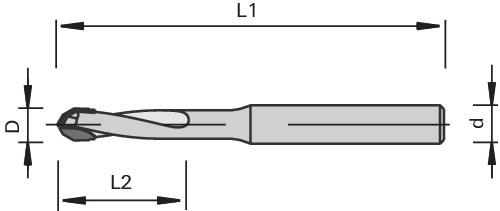

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- Well suited for GFRP, mineral workpiece and other abrasive materials
Design
- Faceted tip geometry with standard DP cutting edges
Advantages
- Long edge life and resistance against vibration, therefore also suitable for instable workpiece clamping
Notes
- Intermediate dimensions available continuously from diameter 4.0 mm to 20.0 mm
- Other dimensions and configurations on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 4 | 20 | 4,0 | 50 | 2 | R | 187175 | ||
| 5 | 20 | 6,0 | 60 | 2 | R | 187176 | ||
| 6 | 25 | 6,0 | 60 | 2 | R | 187177 | ||
| 8 | 30 | 8,0 | 70 | 2 | R | 187178 | ||
| 10 | 35 | 10 | 80 | 2 | R | 187179 | ||
