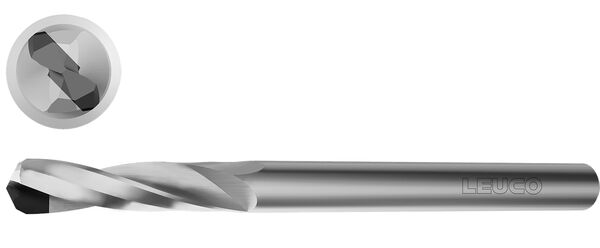

CD040 Solid drill bit 130/60 DP
Product

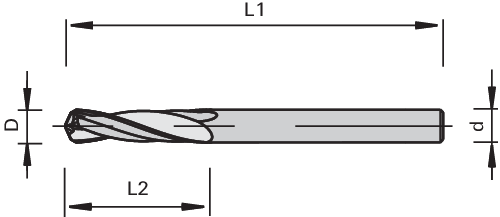

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- Universal tool for a variety of materials: fiber reinforced plastics, aluminum, stacks or CMC and ceramic
Design
- solid continuous DP cutting edge and faceted tip geometry
Advantages
- compared to standard DP cutting edges, greater geometric freedom and therefore higher performance is possible
- very robust design, insensitive to vibrations
Notes
- Intermediate dimensions available continuously from diameter 4.0 mm to 20.0 mm
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 4 | 26 | 4,0 | 60 | 2 | R | 187180 | ||
| 6 | 26 | 6,0 | 70 | 2 | R | 187181 | ||
| 8 | 31 | 8,0 | 70 | 2 | R | 187182 | ||
