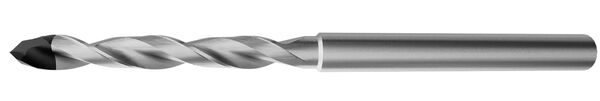

CD050 Solid-head drill bit 90/30 DP
Product

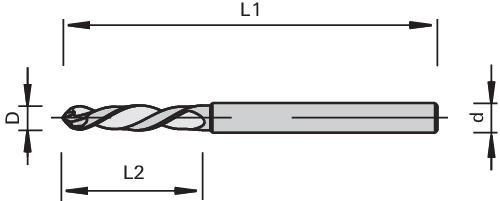

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- Very well suited for für UD laminates for example CFRP
Design
- Optimized, faceted tip geometry for chip-free through holes
Advantages
- The complete DP drill bit offers maximum freedom when choosing the drill bit geometry
- Therefore a number of teeth higher than two is possible
- Very small diameters are possible
Notes
- Intermediate dimensions available continuously up to a diameter of 12.0 mm
- Recommended especially for diameters up to 4.0 mm
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 3.3 | 27 | 4,0 | 59 | 2 | R | 187183 | ||
| 5 | 27,5 | 6,0 | 76 | 2 | R | 187184 | ||
