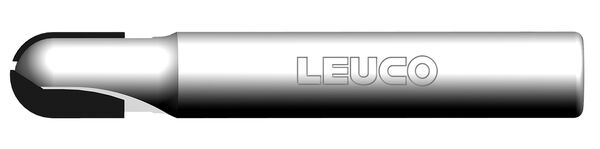

CM040 Ball end mill DP
Product

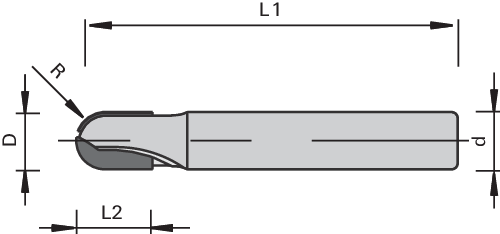

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- Suitable for line-by-line milling, copying shaping or grooving
Design
- as standard with alternating shear angle
- also available with shear angle on one side or neutral shear angle
- With shear angle on one side or shorter edge length according to customer requirements
Advantages
- Smooth running due to alternating shear angle
Notes
- With shear angle on one side or shorter edge length according to customer requirements
- Other dimensions and configurations on request
|
R
[mm] |
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | Helical direction |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 1,5 | 3 | 3,0 | 3,0 | 50 | 1+1 | straight | 0 | A | R | 187171 | ||
| 2,0 | 4 | 6,0 | 4,0 | 65 | 1+1 | positive/negative | 3 | A | R | 186931 | ||
| 2,5 | 5 | 8,0 | 6,0 | 65 | 1+1 | positive/negative | 3 | A | R | 187172 | ||
| 3 | 6 | 10 | 6,0 | 65 | 1+1 | positive/negative | 3 | A | R | 186932 | ||
| 4 | 8 | 12 | 8,0 | 65 | 1+1 | positive/negative | 3 | A | R | 186933 | ||
| 5 | 10 | 15 | 10 | 75 | 1+1 | positive/negative | 5 | A | R | 187173 | ||
| 6 | 12 | 18 | 12 | 75 | 1+1 | positive/negative | 5 | A | R | 187170 | ||
