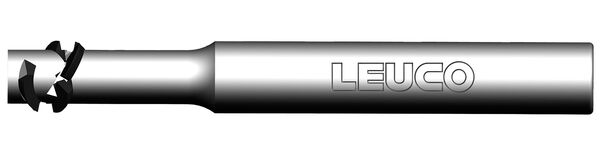

CM110 Compression milling cutter DP (p-System)
Product

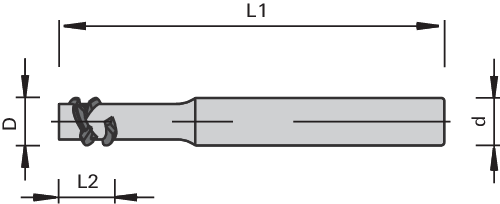

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- Optionally with or without plunge tip
- Diagonal plunge-cutting is not possible with plunge tip
Design
Advantages
- High cutting quality and long edge life thanks to extreme shear angles
Notes
- Must be used in the middle of the component (adhere to the compression zone)
- Other dimensions and configurations on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 6 | 8,7 | 6,0 | 60 | 1+1 | 70 | C | R | 186920 | ||
| 6 | 8,7 | 6,0 | 60 | 1+1 | 70 | A | R | 186922 | ||
| 8 | 7,1 | 8,0 | 65 | 1+1 | 70 | C | R | 186921 | ||
| 8 | 7,4 | 8,0 | 70 | 1+1 | 70 | A | R | 186923 | ||
| 10 | 10,3 | 10 | 75 | 1+1 | 70 | C | R | 187186 | ||
| 10 | 10,3 | 10 | 75 | 1+1 | 70 | A | R | 187188 | ||
| 12 | 12,8 | 12 | 75 | 1+1 | 70 | C | R | 187187 | ||
| 12 | 12,6 | 12 | 75 | 1+1 | 70 | A | R | 187189 | ||
