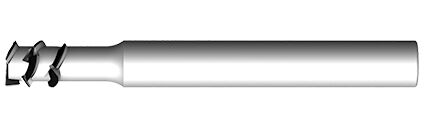

CM120 Grooving cutter DP (p-System)
Product

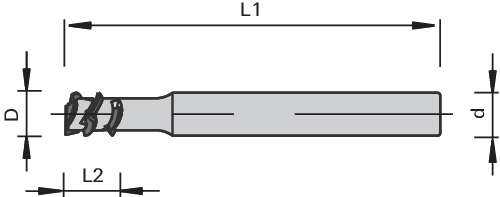

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- For grooving and scarfing operations
- Vertical plunge-cutting only in case of a small depth (max. 2 mm)
- Plunge-cuts in helix or ramping motion should be preferred
Design
Advantages
- High cutting quality and long edge life thanks to extreme shear angles
Notes
- Additional dimensions and special configurations are possible
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 6 | 4,6 | 6,0 | 60 | 1+1 | 70 | A | R | 186924 | ||
| 8 | 10 | 8,0 | 70 | 1+1 | 70 | A | R | 186925 | ||
| 10 | 10,8 | 10 | 75 | 1+1 | 70 | A | R | 187190 | ||
| 12 | 12 | 12 | 75 | 1+1 | 70 | A | R | 187191 | ||
