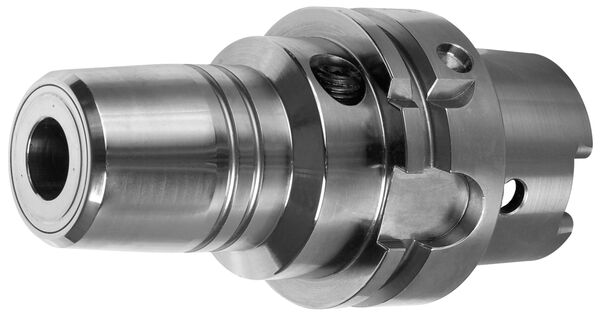

Hydraulic expansion chucks HSK 50A and HSK 63A
Product

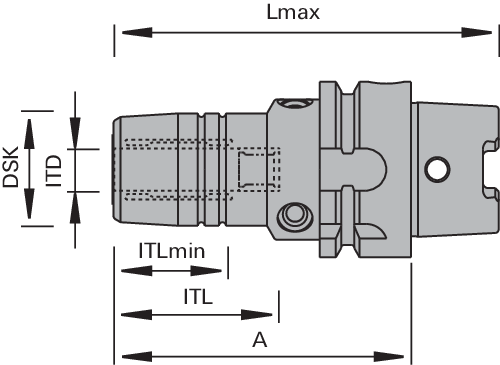

Drawing
Article
Description
Machine / Application
- For precise clamping of shank-type tools with cylindrical shank without additional clamping device
Design
Advantages
- Minimization of setup-times thanks to easy and quick tool change
- Increased process safety, long edge lives and high machining quality thanks to very high concentricity and repeating accuracy
- Vibration-absorbing due to hydraulic clamping
Notes
|
Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
a
[mm] |
Weight
[kg] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 12 | 46 | HSK 63A | 32 | 85 | 1.08 | 187210 | ||
| 12 | 46 | HSK 50A | 32 | 85 | 0.74 | 187209 | ||
