Edge Jointing Cutters HW - SCM-Stefani

Showentries

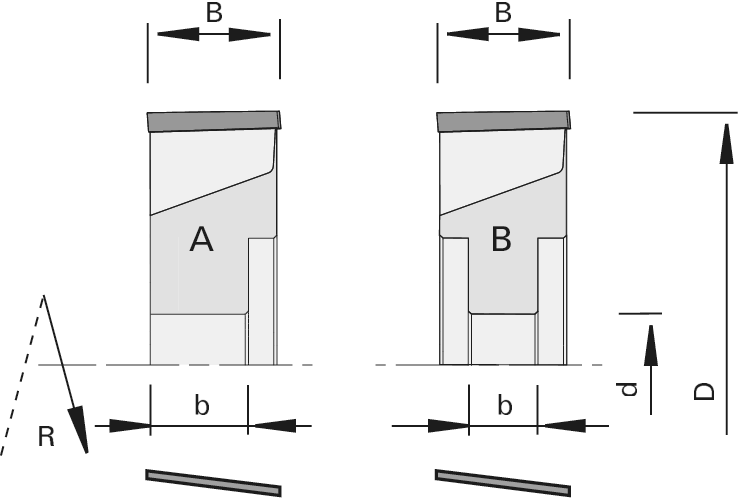

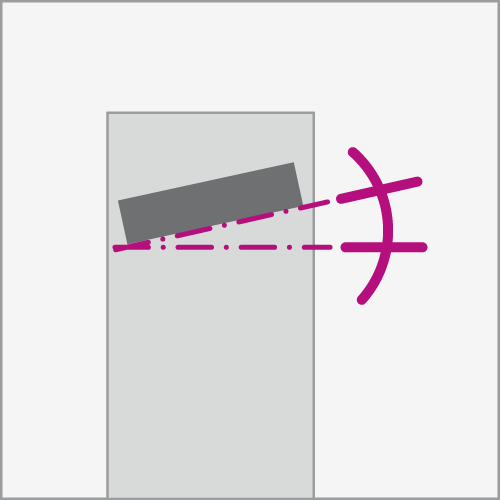

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	Shear∡ [°]	Type	nmax [min-1]	L/R	Machine/Type	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	70	20	14.5	16	4	5x2,3	12	A	18,000	L	SCM-Stefani-RSK	182985	\|
	70	20	14.5	16	4	5x2,3	12	A	18,000	R	SCM-Stefani-RSK	182986	\|
	75	20	10.5	16	4	5x2,3	12	A	18,000	L	SCM-Stefani-RSP	182989	\|
	75	20	10.5	16	4	5x2,3	12	A	18,000	R	SCM-Stefani-RSP	182990	\|
	75	30	11	16	4	5x2,3	12	B	18,000	L	SCM-Stefani-RSP	182991	\|
	75	30	11	16	4	5x2,3	12	B	18,000	R	SCM-Stefani-RSP	182992	\|
	80	20	11	16	4	5x2,3	12	B	18,000	L	SCM-Stefani-R	182617	\|
	80	20	11	16	4	5x2,3	12	B	18,000	R	SCM-Stefani-R	182618	\|

Show 1 to 8 of 8 entries
