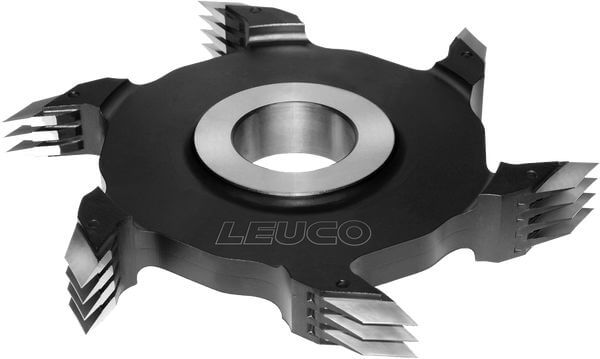

Finger Joint Cutters HS
Product
Drawing
- High Speed Steel [HS]
- MEC
Article
Description
Machine / Application
- finger joint machines
- machines with cross-cutting device
- for longitudinal joints in soft woods
Design
- standard and topcoat
- HS Solid 24
Advantages
- increased edge lives and higher wear resistance and gliding features thanks to topcoat coating
Notes
|
Ø D
[mm] |

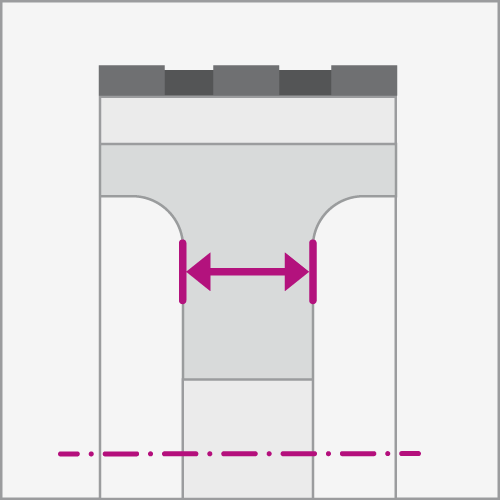

B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |

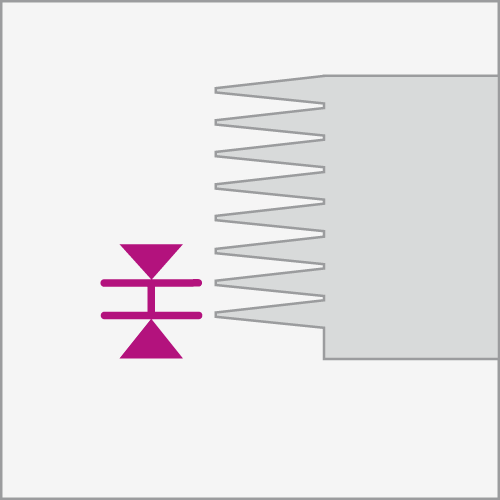

Partition
[mm] |
Finger joint length
[mm] |

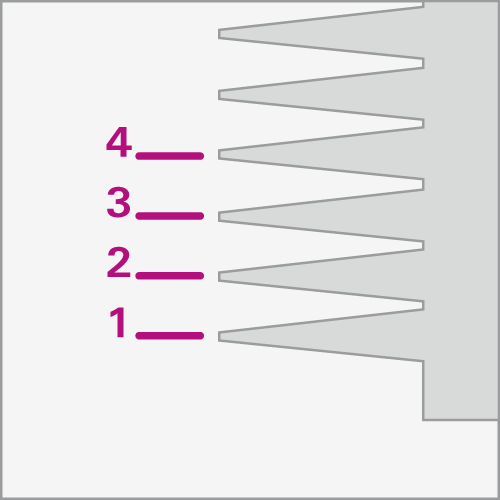

Number of finger joints
[pc.] |
nmax
[min-1] |
Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 160 | 32,4 | 30.4 | 50 | 3+3 | 1.6 | 4/4,5 | 20 | 9,000 | HS Solid 24 | 182122 | ||
| 250 | 26 | 24 | 50 | 3+3 | 1.6 | 4/4,5 | 16 | 6,000 | HS Solid 24 | 182113 | ||
| 250 | 30 | 28 | 50 | 6+6 | 2.8 | 6/7 | 10 | 6,000 | HS Solid 24 | 192467 | ||
| 255 | 30 | 28 | 50 | 6+6 | 2.8 | 6/7 | 10 | 6,000 | HS Solid 24 | 192468 | ||
| 160 | 32,4 | 30.4 | 50 | 3+3 | 1.6 | 4/4,5 | 20 | 9,000 | HS Solid 24, topcoat | 192202 | ||
| 250 | 26 | 24 | 50 | 3+3 | 1.6 | 4/4,5 | 16 | 6,000 | HS Solid 24, topcoat | 192201 | ||
| 250 | 30 | 28 | 50 | 6+6 | 2.8 | 6/7 | 10 | 6,000 | HS Solid 24, topcoat | 192466 | ||
| 255 | 30 | 28 | 50 | 6+6 | 2.8 | 6/7 | 10 | 6,000 | HS Solid 24, topcoat | 192469 | ||
