50661673 - 1577 Round Star Cutterheads

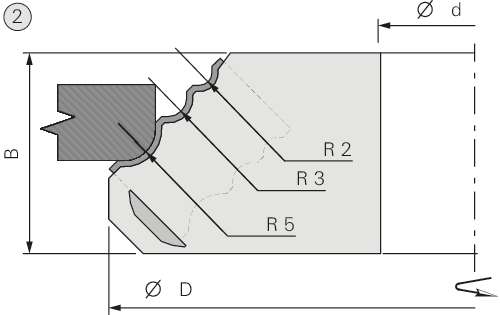

	Feature	Value
	R = Radius	2, 3, 5 [mm]
	Ø D = Cutting circle diameter	140 [mm]
	B = Cutting width	32 [mm]
	Ø d = Bore diameter	30 [mm]
	Z = No. of teeth	2
	Type = Type	2
	nmin-nmax = RPM range	5400-6400 [min-1]
	L = Delivery Status
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request

	Product picture	Description	Design	Ident-No.	Comp./ Inqu.
		Profile Knives KB19	25x16x2.0N R=Ø2, 3, 5	50820002	\|
available from stock available on short notice Delivery time on request

	Description	Design	Ident-No.	Comp./ Inqu.
	Screwdrivers with sliding handle for hexagon socket	SW4x100	166091	\|
	Clamping Pieces	12x8,5/M8L	180357	\|
	Clamping Set Screws	M8x26 SW4	180340	\|
	Pressure Bars	23x11x6	50591382	\|
available from stock available on short notice Delivery time on request
