UltraProfiler plus - Cutterheads HW (cranked) - MAN
Product

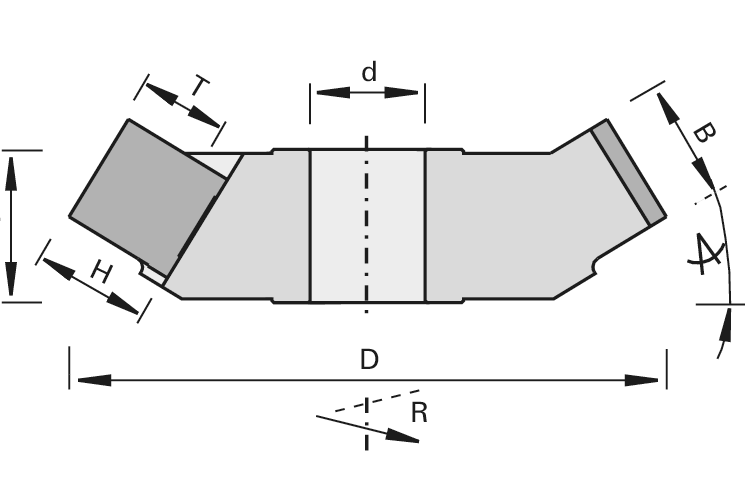

Drawing
- UltraProfiler plus
- Tungsten Carbide [HW]
- MAN
Article
Description
Machine / Application
- machining centers
- double end tenoners
- molders
- table shapers
- for profiling of solid woods and wood-based panels
Design
- cutterhead body made from extremely tight aluminum alloy
- with shear angle
- cutting material: HW HL Board 06 for solid woods and wood-based panels
Advantages
- large profile depths possible
- cutterhead body and knives will be profiled according to customer specifications
- cutting speed up to 80 m/s
- concentric accuracy 0,03 mm
Notes
- knives available in Topline design (polished face, ultra-fine ground clearance surface)
- with a larger shear angle, the number of teeth may be lower
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |

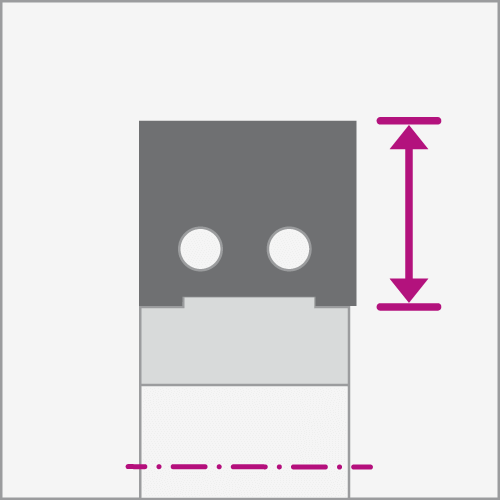

H
[mm] |
Ø d
[mm] |
Ø dmax
[mm] |
Z |
Drawing
[Foil] |
nmin-nmax
[min-1] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 150 | 32-40 | 40 | 30 | 30 | 2-6 | UP | 5100-10200 | UP30 | ||
| 165 | 32-50 | 40 | 30 | 30 | 2-6 | UP | 5100-9200 | UP31 | ||
| 180 | 40-60 | 40 | 30 | 50 | 2-6 | UP | 5000-8500 | UP32 | ||
| 195 | 40-60 | 40 | 30 | 50 | 2-8 | UP | 4800-7800 | UP33 | ||
