Sizing Saw Blades HW for Segment Hoggers "F"

Showentries

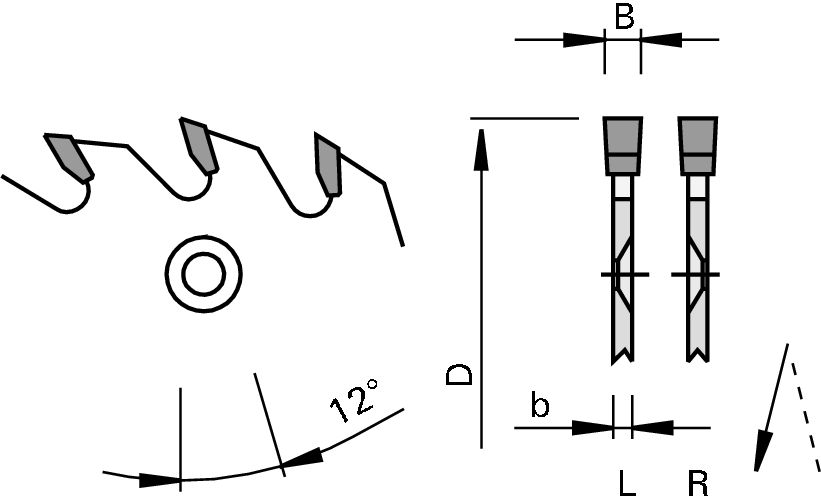

	Ø D [mm]	B [mm]	b [mm]	Ø d [mm]	Z	Free slots [pc.]	NL	Hook angle [°]	L/R	LEUCODUR	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	200	4,0	2.8	80	40	4	4/6,5/140	12	L	HL Board 06	188226	\|
	200	4,0	2.8	80	40	4	4/6,5/140	12	R	HL Board 06	188227	\|
	200	4,0	2.8	80	60	4	4/6,5/140	12	L	HL Board 06	188228	\|
	200	4,0	2.8	80	60	4	4/6,5/140	12	R	HL Board 06	188229	\|
	250	4,0	2.8	80	48	6	6/6,5/200	12	L	HL Board 06	188230	\|
	250	4,0	2.8	80	48	6	6/6,5/200	12	R	HL Board 06	188231	\|
	250	4,0	2.8	100	48	6	6/6,5/200	12	L	HL Board 06	188238	\|
	250	4,0	2.8	100	48	6	6/6,5/200	12	R	HL Board 06	188239	\|
	250	4,0	2.8	80	72	6	6/6,5/200	12	L	HL Board 06	188236	\|
	250	4,0	2.8	80	72	6	6/6,5/200	12	R	HL Board 06	188237	\|

Show 1 to 10 of 12 entries
