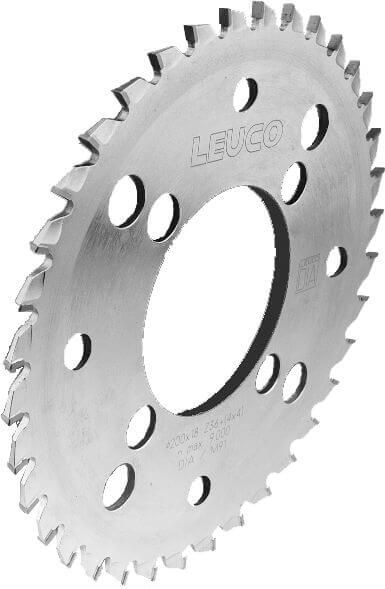

Circular Saw Blades DP for TwinTec Hoggers "ES-FA"

Product

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • double end tenoners
  • edge trimming machines
  • for chip-free sizing of raw, melamine-, paper-, HPL-laminated, foiled and veneered panels

Design

  • tooth configuration: top bevel with chamfer and face shear "ES-FA"
  • n max = 7,200 min-1
  • resharpenable area 4 mm; sides of teeth can be resharpened
  • saw blade with equal tooth pitch

Advantages

  • decreased downtimes thanks to long edge lives

Notes

  • application with feed
  • for scoring/hogging (RZ) and double hogging (DZ) process
  • for combination with LEUCO TwinTec hoggers
  • the specified feed rates are based on n = 6,000 min-1
  • sense of rotation see drawing

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z L/R nmax
[min-1] 		Feed DZ
[m/min] 		Feed RZ
[m/min] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

220 4,0 2.8 80 24 L 7,200 25 15 171353
|
220 4,0 2.8 80 24 R 7,200 25 15 171354
|
220 4,0 2.8 80 30 L 7,200 32,5 20 171355
|
220 4,0 2.8 80 30 R 7,200 32,5 20 171356
|
220 4,0 2.8 80 36 R 7,200 40 25 171358
|
220 4,0 2.8 80 42 L 7,200 45 27,5 171359
|
220 4,0 2.8 80 42 R 7,200 45 27,5 171360
|
220 4,0 2.8 80 48 L 7,200 50 30 171361
|
220 4,0 2.8 80 48 R 7,200 50 30 171362
|
220 4,0 2.8 80 54 L 7,200 55 35 171363
|
Show 1 to 10 of 13 entries
