3P-Blanks HW (horizontal format)

Product

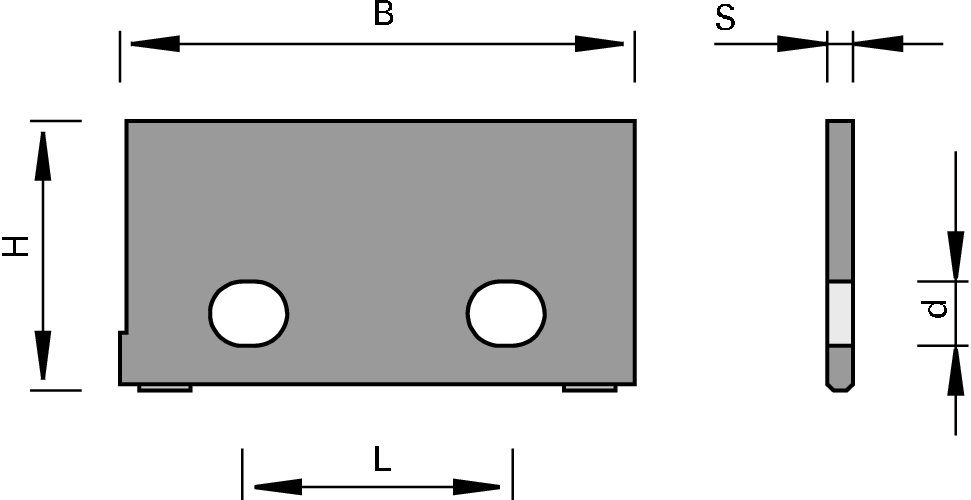

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in LEUCO EcoPro and special cutterheads

Design

  • two-point seating surface and point-stop
  • optionally topline (polished face)
  • cutting material: HW
  • HL Board 06 for wood-based panels, plastics and hard woods
  • HL Solid 60 for soft woods

Advantages

  • precise positioning of the blanks for profiling and of the single-sided profile knife in the cutterhead
  • topline design: highest cutting quality and significantly improved cutting edges

Notes

  • profile knife can be profiled per customer specifications

Table- and picture caption ...

Dimension
[mm] 		B
[mm] 		H
[mm] 		S
[mm] 		Ø d
[mm] 		L
[mm] 		LEUCODUR PU
[pc.] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

24x20,9x2 24 20.9 2 4,4 10-14 HL Board 06 10 N 185948
|
30,2 30.4 2 5,0 11,8-13,8 HL Board 06 10 N 178528
|
32,2 35.4 2 5,0 11,8-13,8 HL Board 06 10 N 178530
|
32,8 47.2 2 5,0 11,8-13,8 HL Board 06 10 N 178531
|
35,2 26 2 5,0 11,8-13,8 HL Board 06 10 N 178532
|
40,1 30.4 2 5,0 21,7-25,5 HL Board 06 10 N 178534
|
40,8 36 2 5,0 21,7-25,5 HL Board 06 10 N 178535
|
42,8 36 2 5,0 21,7-25,5 HL Board 06 10 N 178537
|
45,8 36 2 5,0 21,7-25,5 HL Board 06 10 N 178538
|
49,9 33 2 5,0 21,7-25,5 HL Board 06 10 N 178540
|
Show 1 to 10 of 78 entries
