3P-Blanks HW (upright format)

Product

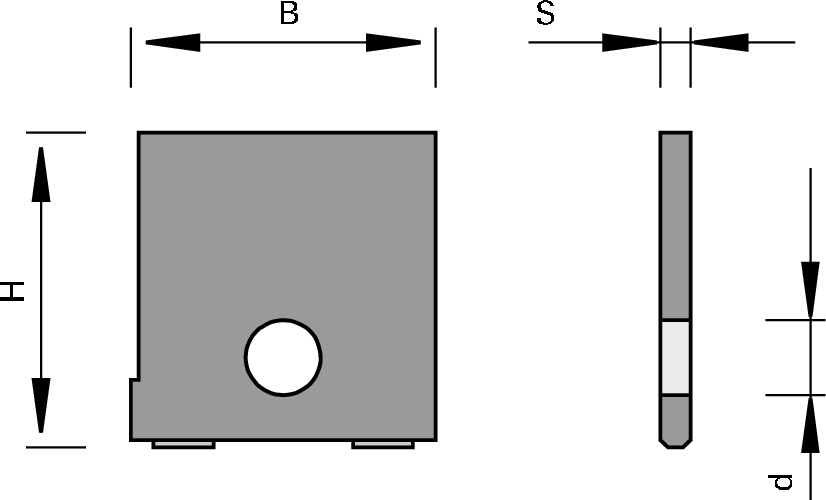

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in LEUCO EcoPro and special cutterheads

Design

  • two-point seating surface and point-stop
  • optionally topline (polished face)
  • cutting material: HW
  • HL Board 06 for wood-based panels, plastics and hard woods
  • HL Solid 60 for soft woods

Advantages

  • precise positioning of the blanks for profiling and of the single-sided profile knife in the cutterhead
  • topline design: highest cutting quality and significantly improved cutting edges

Notes

  • profile knife can be profiled per customer specifications

Table- and picture caption ...

B
[mm] 		H
[mm] 		S
[mm] 		Ø d
[mm] 		LEUCODUR PU
[pc.] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

12,5 20.5 2 5,0 HL Board 06 10 N 178509
|
15,5 25.5 2 5,0 HL Board 06 10 N 178511
|
16,7 25.9 2 5,0 HL Board 06 10 N 178513
|
18,4 36.3 2 5,0 HL Board 06 10 N 178516
|
20,3 30.4 2 5,0 HL Board 06 10 N 178519
|
22,3 25.5 2 5,0 HL Board 06 10 N 178520
|
24,3 28.4 2 5,0 HL Board 06 10 N 178522
|
25,3 35.3 2 5,0 HL Board 06 10 N 178524
|
28,2 35.3 2 5,0 HL Board 06 10 N 178526
|
12,5 20.5 2 5,0 HL Solid 60 10 N 179509
|
Show 1 to 10 of 53 entries
