Selection via tool type

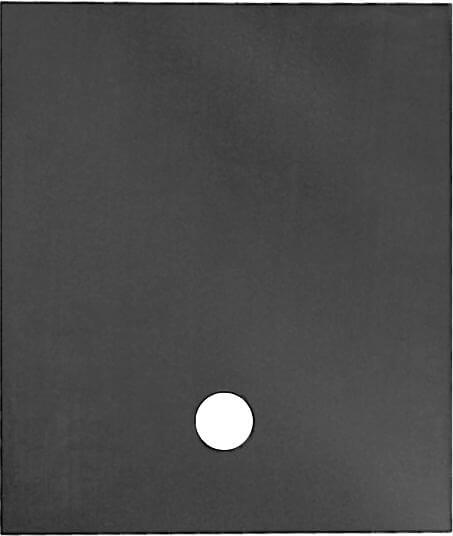

Blanks HW - bore not central

Product

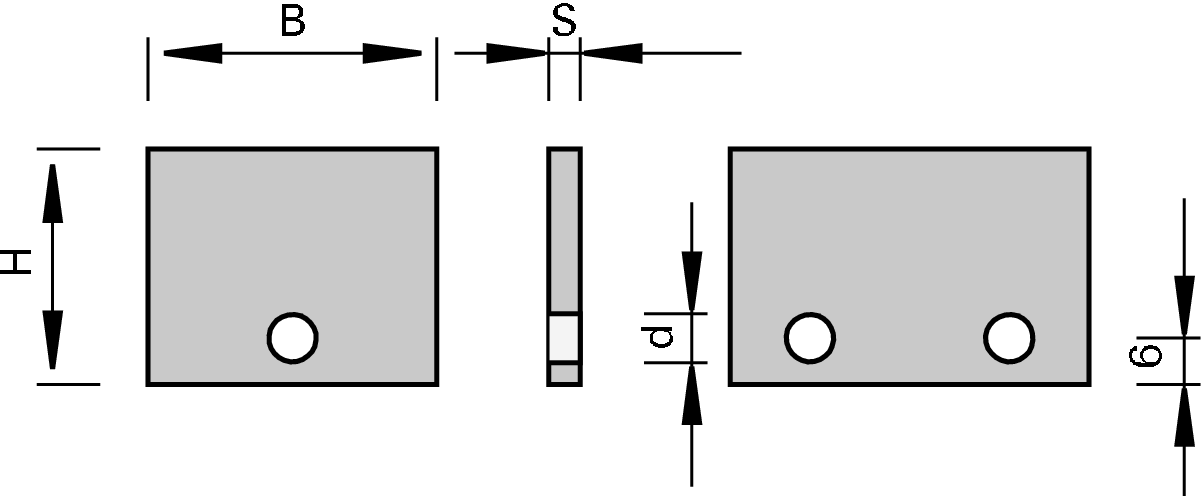

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in profile cutterheads

Design

  • width, height, and thickness precision ground
  • cutting material: HW
  • HL Board 05 for wood-based panels, plastics and hard woods

Advantages

Notes

Table- and picture caption ...

B
[mm] 		H
[mm] 		S
[mm] 		Ø d
[mm] 		L
[mm] 		LEUCODUR PU
[pc.] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

18 18.3 2 4,2 HL Board 05 10 168829
|
20 25.3 2 4,2 HL Board 05 10 168830
|
24 28.3 2 4,2 HL Board 05 10 168831
|
32 22.3 2 4,2 HL Board 05 10 168832
|
40 30.3 2 4,2 HL Board 05 10 168833
|
50 32.3 2 4,2 24 HL Board 05 10 168834
|
Show 1 to 6 of 6 entries
