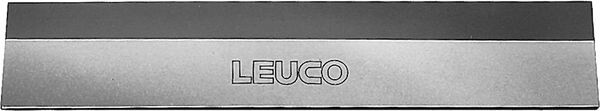

IK1017 Planing Knives HS
Product

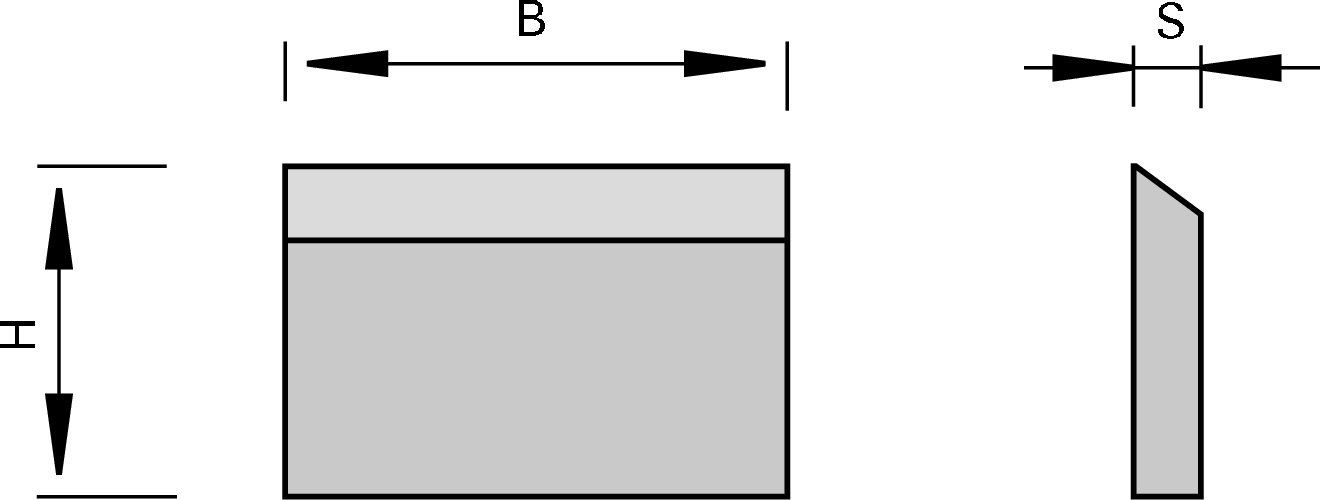

Drawing
- High Speed Steel [HS]
Article
Description
Machine / Application
- for use in planing cutterheads
Design
- cutting material: high speed steel (HS 18%) for soft woods
- wedge angle 40°
- topcoat coating
Advantages
- topcoat coating for increased edge lives
Notes
- from safety reasons please always mount knives with equal weight (packing unit VE) opposite each other
|
B
[mm] |
H
[mm] |
S
[mm] |
LEUCODUR |
PU
[pc.] |
Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||
| 60 | 30 | 3 | HS | 10 | topcoat | 80516259 | ||
| 80 | 30 | 3 | HS | 10 | topcoat | 80516268 | ||
| 100 | 30 | 3 | HS | 10 | topcoat | 80516269 | ||
| 120 | 30 | 3 | HS | 10 | topcoat | 80516270 | ||
| 130 | 30 | 3 | HS | 10 | topcoat | 80516281 | ||
| 150 | 30 | 3 | HS | 10 | topcoat | 80516260 | ||
| 170 | 30 | 3 | HS | 10 | topcoat | 80516295 | ||
| 180 | 30 | 3 | HS | 10 | topcoat | 80516261 | ||
| 210 | 30 | 3 | HS | 10 | topcoat | 80516262 | ||
| 230 | 30 | 3 | HS | 10 | topcoat | 80516282 | ||
| 260 | 30 | 3 | HS | 10 | topcoat | 80516263 | ||
| 310 | 30 | 3 | HS | 10 | topcoat | 80516284 | ||
| 310 | 35 | 3 | HS | 10 | topcoat | 80516283 | ||
| 320 | 30 | 3 | HS | 10 | topcoat | 80516285 | ||
| 330 | 35 | 3 | HS | 10 | topcoat | 80516264 | ||
| 400 | 30 | 3 | HS | 10 | topcoat | 80516265 | ||
| 410 | 30 | 3 | HS | 10 | topcoat | 80516267 | ||
| 410 | 35 | 3 | HS | 10 | topcoat | 80516266 | ||
| 500 | 30 | 3 | HS | 10 | topcoat | 80516287 | ||
| 500 | 35 | 3 | HS | 10 | topcoat | 80516286 | ||
| 510 | 30 | 3 | HS | 10 | topcoat | 80516289 | ||
| 510 | 35 | 3 | HS | 10 | topcoat | 80516288 | ||
| 610 | 30 | 3 | HS | 10 | topcoat | 80516291 | ||
| 610 | 35 | 3 | HS | 10 | topcoat | 80516290 | ||
| 630 | 30 | 3 | HS | 10 | topcoat | 80516292 | ||
| 630 | 35 | 3 | HS | 10 | topcoat | 80516296 | ||
| 640 | 30 | 3 | HS | 10 | topcoat | 80516294 | ||
| 640 | 35 | 3 | HS | 10 | topcoat | 80516293 | ||
