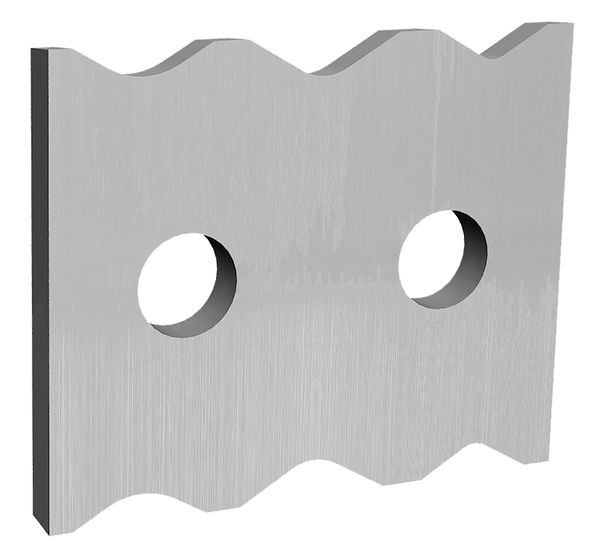

Multi Scraper Knives HW - IMA

Product

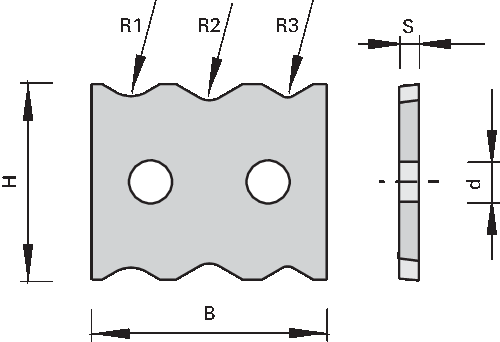

Drawing

Tungsten Carbide [HW]

current tab: current tab: Article

Article

Machine / Application

edge banding machines IMA - Aggregate 08.516
for use in scraper holders
for scraping of standard edge bandings such as PP / PVC / ABS

Design

up to 4 different profile combinations in one scraper
cutting material: HW
HL Board 06 for wood-based materials, plastics and hard woods

Advantages

up to 4 profiles without tool change

Notes

other special profile combinations are available!

Showentries

	R1 [mm]	R2 [mm]	R3 [mm]	Chamfer∡ [°]	B [mm]	H [mm]	S [mm]	Ø d [mm]	L [mm]	LEUCODUR	PU [pc.]	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	3	2	1		24	20	2	4,4	12	HL Board 06	2	187339	\|
	2	1.5	1	45	24	20	2	4,4	12	HL Board 06	2	187340	\|

Show 1 to 2 of 2 entries
