Dowel Bits DP

Product

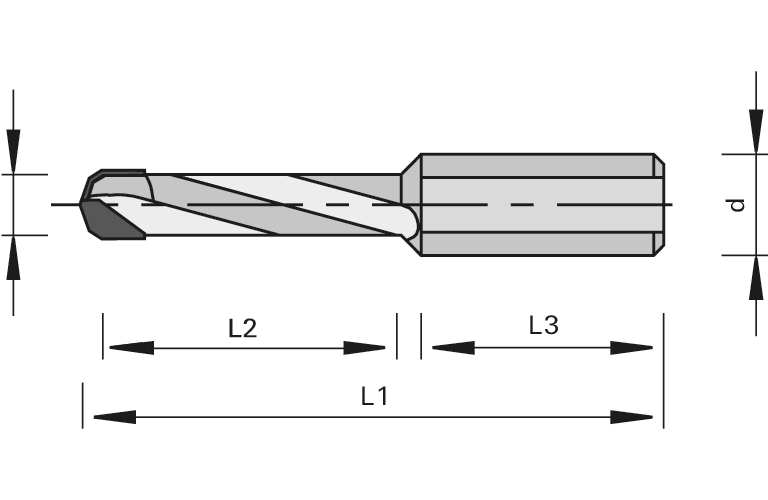

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • automatic boring machines
  • CNC machining centers
  • for chip-free drilling in raw and laminated panels and composite materials

Design

  • special cutting edge geometry, 2 DP rakers which form a double chamfer
  • spiral without back guide
  • DP-tipped

Advantages

  • long edge life when machining extremely abrasive materials
  • chip-free hole edges thanks to special cutting edge geometry

Notes

  • adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
  • adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
  • clamping elements: combi chuck, quick-change chuck

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

8 27 10 26 57.5 2 R 183008
|
8 27 10 26 57.5 2 L 183009
|
8 35 10 30 70 2 R 183012
|
8 35 10 30 70 2 L 183013
|
10 35 10 30 70 2 L 183053
|
10 35 10 30 70 2 R 183054
|
Show 1 to 6 of 6 entries
