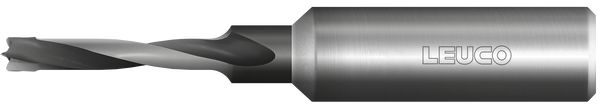

Dowel Bits VHW - topline

Product

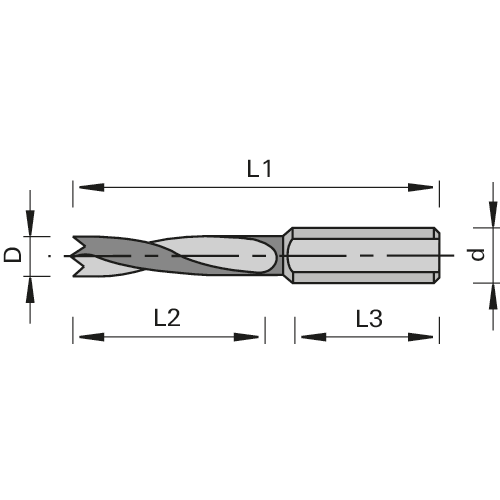

Drawing

  • Solid Tungsten Carbide
  • MAN

Article

Description

Machine / Application

  • automatic boring machines
  • CNC machining centers
  • for chip-free drilling of dowel holes in solid woods and wood-based panels

Design

  • special cutting edge geometry
  • centering point
  • boring part made from fine-grain solid tungsten carbide
  • enhancement of the previous topline HW design

Advantages

  • tool life increased up to twelvefold compared to traditional dowel bits thanks to special HW and special grinding
  • chip-free hole edges thanks to special cutting edge geometry
  • safe drilling thanks to centering point
  • excellent chip evacuation thanks to optimized spiral design

Notes

  • adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
  • adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
  • clamping elements: combi chuck, quick-change chuck
  • other dimensions possible; price and delivery time on request

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

5 30 8,0 19 57.5 L 185746
|
5 30 8,0 19 57.5 R 185745
|
4 20 10 27 57.5 L 185748
|
4 20 10 27 57.5 R 185747
|
5 25 10 27 57.5 L 185750
|
5 25 10 27 57.5 R 185749
|
6 25 10 27 57.5 L 185752
|
6 25 10 27 57.5 R 185751
|
8 25 10 27 57.5 L 185754
|
8 25 10 27 57.5 R 185753
|
Show 1 to 10 of 22 entries
