Mosquito Through-Hole Bits HW

Product

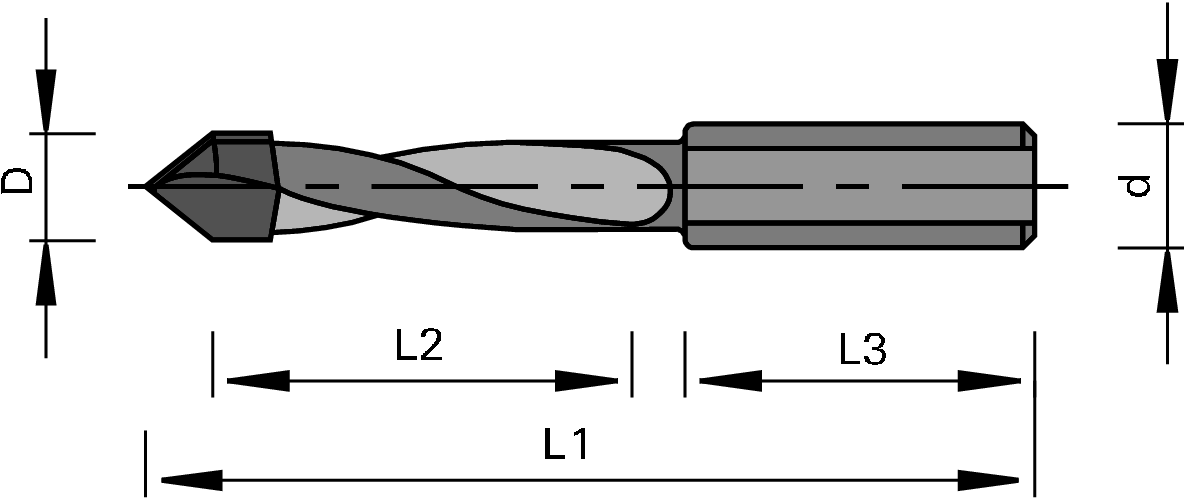

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • portable boring machines
  • automatic boring machines
  • CNC machining centers
  • for chip-free drilling of through-holes in solid woods and wood-based panels

Design

  • special cutting edge geometry
  • HW-plunging tip made from super-fine grain material

Advantages

  • chip-free hole edges thanks to special cutting edge geometry
  • long edge lives thanks to HW plunging tip
  • high process safety thanks to constant quality of the bores for a long time

Notes

  • adjusting screw Ident-No. 001600 M5x10 DIN 551 for precise length adjustment included in delivery
  • adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
  • clamping elements: combi chuck, quick-change chuck

Table- and picture caption ...

Ø D
[mm] 		L2
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

5 27 10 26 57.5 2 L 182458
|
5 27 10 26 57.5 2 R 182459
|
8 27 10 26 57.5 2 L 182460
|
8 27 10 26 57.5 2 R 182461
|
5 35 10 26 70 2 L 182462
|
5 35 10 26 70 2 R 182463
|
6 35 10 26 70 2 L 183689
|
6 35 10 26 70 2 R 183688
|
7 35 10 26 70 2 L 183691
|
7 35 10 26 70 2 R 183690
|
Show 1 to 10 of 14 entries
