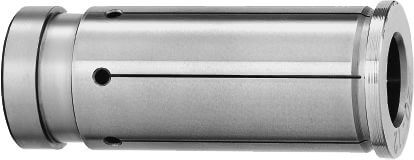

182306 - Universal Reducing Bushings

Product

Drawing

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • for holding shank tools in TRIBOS, ps-System and all standard hydro expansion chuck

Design

  • concentric accuracy ≤ 0.003 mm
  • shank diameter tolerance h7 or g7
  • coolant-tight up to 80 bar

Advantages

  • permanent concentricity and tool-change repeat accuracy ≤ 0.003 mm

Notes

  • Lmin minimum clamping length = minimum shaft length
FeatureValue
Ø d1 = Adapter size on the tool side 10 [mm]
L = Length 3 [mm]
Lmin = Minimum clamping length 32 [mm]
Ø d = Adapter size on the machine side 25 [mm]
L1 = Total length 54.5 [mm]
L = Delivery Status
