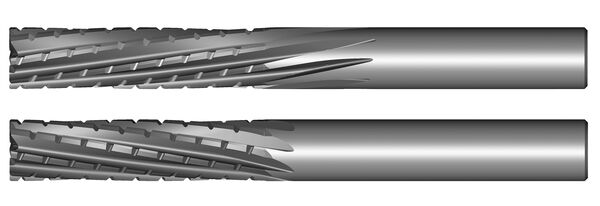

CM010 Multi-Tooth End Mill VHW
Product
Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines or robots
- for plunge cutting with feed in the direction of the Z, X or Y axis
Design
- Available for pushing and pulling cut
Advantages
- Special tool geometry for smooth running, even with thin components and difficult workpiece clamping
- Reduced cutting forces thanks to chip breakers and very sharp cutting edges ensure the best machining quality
- Long edge life due to micrograin carbide
Notes
- Other dimensions and configurations on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z | Helical direction |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 6 | 20 | 6 | 38 | 60 | 8 | positive | 10 | A | R | 187810 | ||
| 6 | 20 | 6 | 38 | 60 | 8 | negative | -10 | A | R | 187812 | ||
| 8 | 25 | 8 | 43 | 70 | 8 | positive | 10 | A | R | 187814 | ||
| 8 | 25 | 8 | 43 | 70 | 8 | negative | -10 | A | R | 187815 | ||
| 10 | 32 | 10 | 38 | 75 | 8 | positive | 10 | A | R | 80492316 | ||
| 10 | 32 | 10 | 24 | 75 | 8 | negative | -10 | A | R | 80492317 | ||
| 12 | 32 | 12 | 34 | 85 | 8 | positive | 10 | A | R | 80492318 | ||
| 12 | 32 | 12 | 48 | 85 | 8 | negative | -10 | A | R | 80492319 | ||
