187814 - CM010 Multi-Tooth End Mill VHW
Product

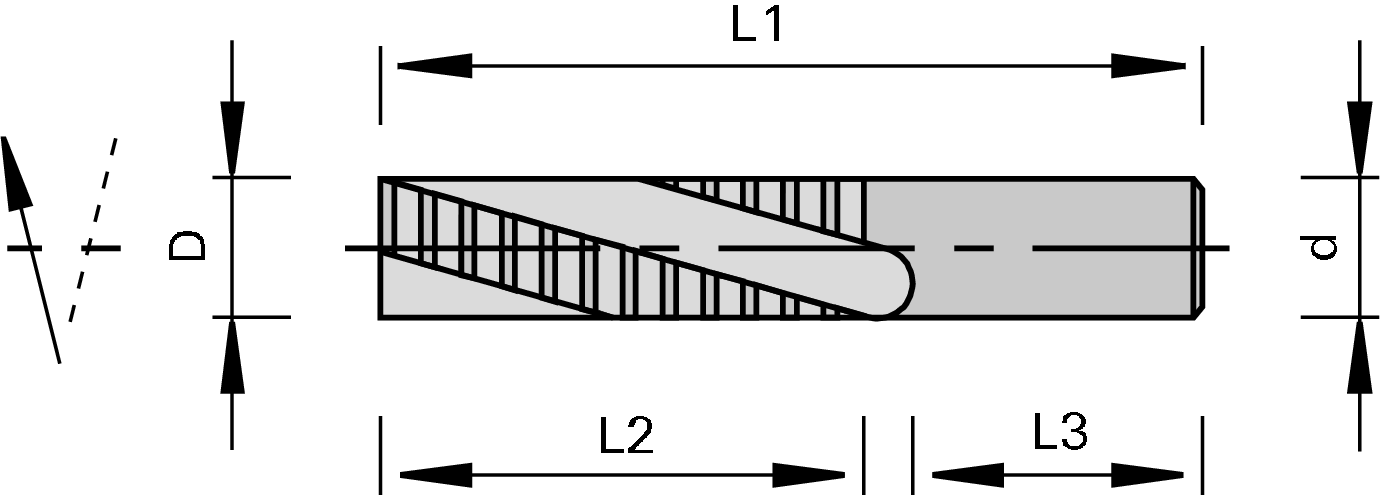

Drawing
-
- Solid Tungsten Carbide
- MEC
Technical data
Description
Machine / Application
- Can be used on CNC and gantry machines or robots
- for plunge cutting with feed in the direction of the Z, X or Y axis
Design
- Available for pushing and pulling cut
Advantages
- Special tool geometry for smooth running, even with thin components and difficult workpiece clamping
- Reduced cutting forces thanks to chip breakers and very sharp cutting edges ensure the best machining quality
- Long edge life due to micrograin carbide
Notes
- Other dimensions and configurations on request
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 8 [mm] | |
| L2 = Cutting width | 25 [mm] | |
| Ø d = Shank diameter | 8 [mm] | |
| L3 = Shank length | 43 [mm] | |
| L1 = Total length | 70 [mm] | |
| Z = No. of teeth | 8 | |
| Helical direction = Helical direction | positive | |
| Shear∡ = Shear angle | 10 [°] | |
| Type = Type | A | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
