167521 - Grooving Cutters HW-tipped - Z=2

Product

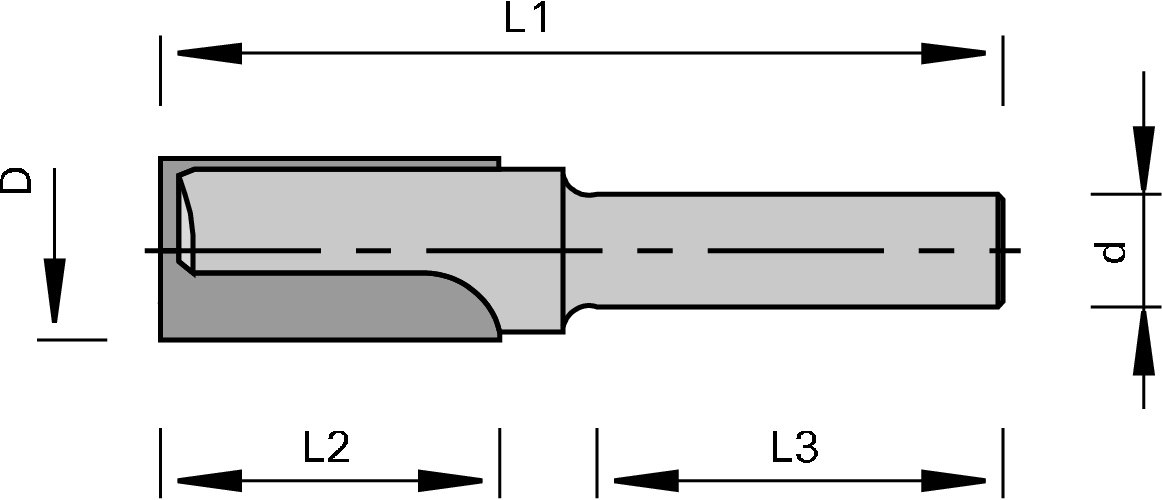

Drawing

  • Tungsten Carbide [HW]
  • MAN

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • portable routers
  • for jointing, rabbeting and grooving in solid woods

Design

  • cutting edges parallel to cutter axis
  • HW-tipped

Advantages

Notes

  • face cutting design allows plunge-cuts
  • clamping elements: draw-in collet chuck
Feature Value
Ø D = Cutting circle diameter 6 [mm]
L2 = Cutting width 16 [mm]
Ø d = Shank diameter 8,0 [mm]
L1 = Total length 46 [mm]
Z = No. of teeth 2
L/R = cutting direction R
L = Delivery Status

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

Downloads

Print data sheet
