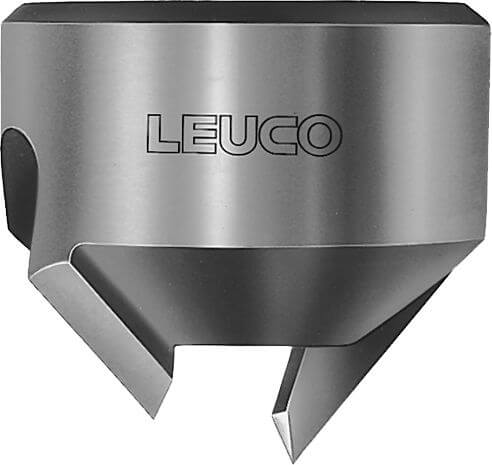

183813 - Countersink Parts HW to be mounted on Twist Drills and Dowel Bits
Product

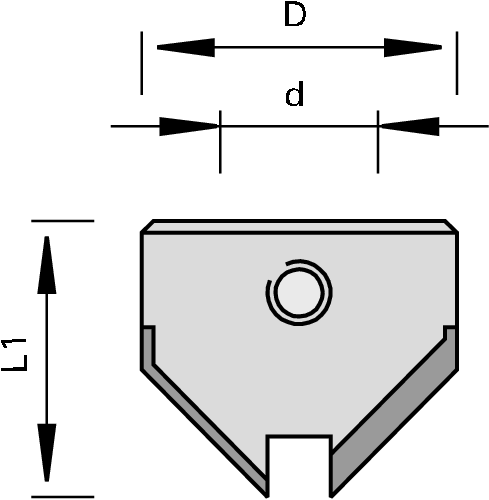

Drawing
-
- Tungsten Carbide [HW]
- MAN
Technical data
Description
Machine / Application
- for drilling of countersinks in solid woods and wood-based panels
- for chip-free countersink holes at 90 degree angle
Design
- HW-tipped
Advantages
Notes
- for installation on twist drills and dowel bits with back-guide on the drill spiral with set screw
- continuous adjustment of the countersink diameter and the boring depth
| Feature | Value | |
|---|---|---|
| Ø D = Bore diameter | 18 [mm] | |
| Ø d = Shank diameter | 9,0 [mm] | |
| L1 = Total length | 15 [mm] | |
| Z = No. of teeth | 2 | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
