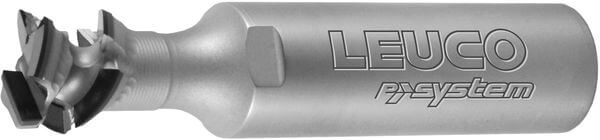

185508 - p-System High-Performance Grooving Shank-Type Cutters CM DP

CNC stationary machines
for grooves, cut outs, pockets and as forend cutter
for chip-free high-performance grooving of solid woods (free of knots) along and accross the grain
for high-performance grooving of melamine-, paper-, HPL-laminated, foiled and veneered panels and lacquered surfaces
Finish-quality in the case of fiber materials such as fabric-laminated panels, linoleum with jute fibers, cork etc.

minimal grooving depth 0.5 mm
as from 25 mm Z=2 is possible, bottom cutting edge is Z=1 always
convex bottom cutting edge for better bottom quality of rabbet, however corner of rabbet not absolutely sharp
for ramping or circular plungeing only
clamping element: precision clamping element e.g. ps-System, TRIBOS, heat shrink-fit chuck
with thread for length adjusting screw
sense of rotation according to VDMA 8849

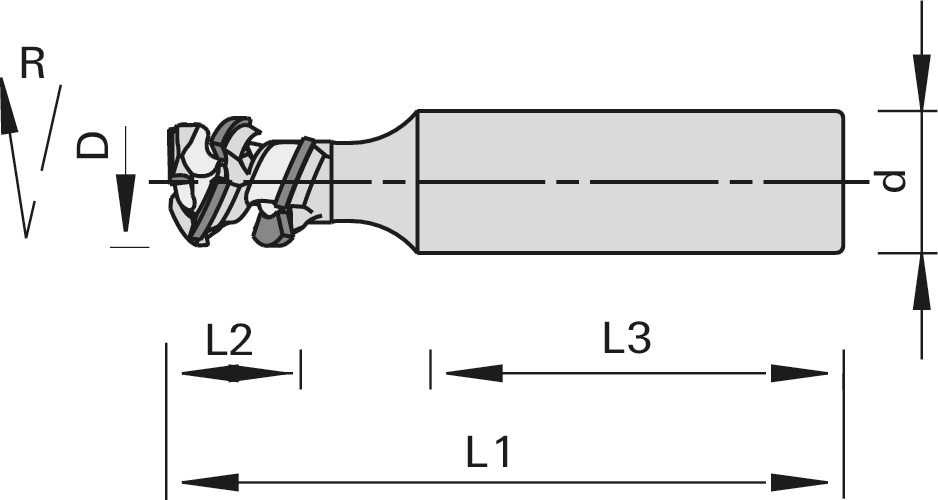

	Feature	Value
	Ø D = Cutting circle diameter	16 [mm]
	L2 = Cutting width	14 [mm]
	Ø d = Shank diameter	16 [mm]
	L3 = Shank length	45 [mm]
	L1 = Total length	85 [mm]
	Z = No. of teeth	1+1
	nmax = maximum RPM	24,000 [min-1]

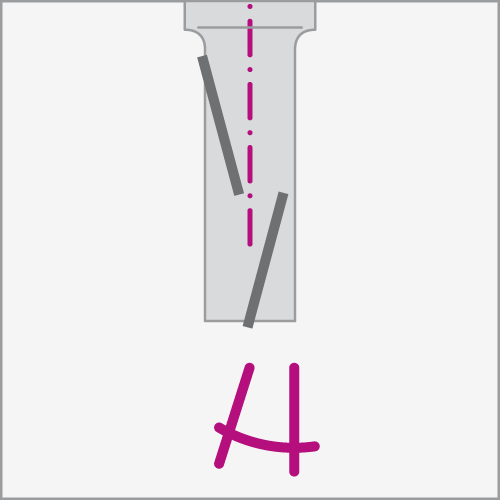

	Shear∡ = Shear angle	70 [°]
	Resharpening area = Resharpening area	1.9 [mm]
	L/R = cutting direction	R
	L = Delivery Status
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
